1L-5L Edible Oil High Speed Automatic Filling Line
Product Description

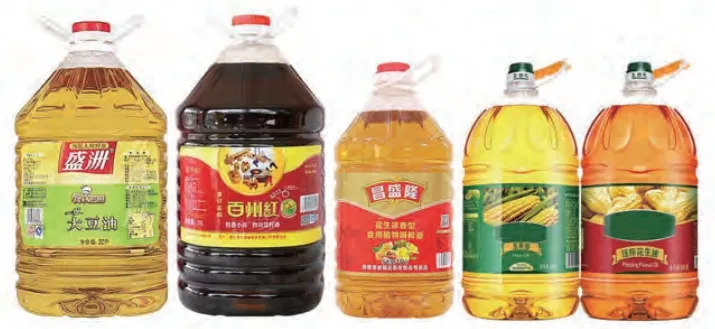

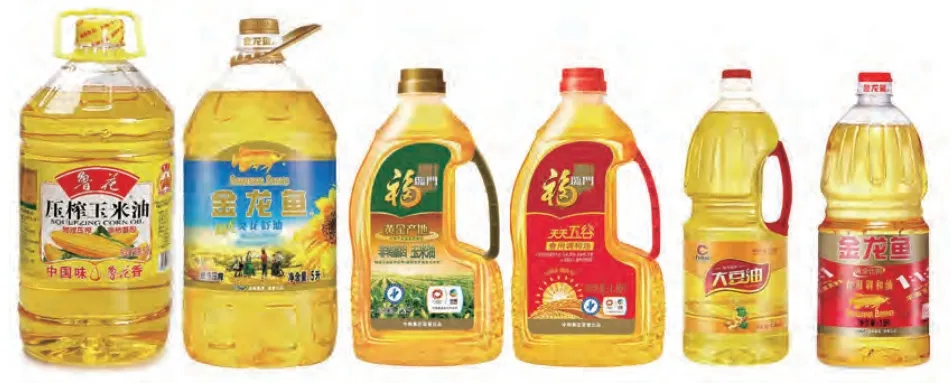

This line is suitable for filling edible oil products with specifications of 1L-5L
Main features:
1. This line is suitable for filling edible oil 1-5L specification products:
2. One click adjustment of the entire line (quick switching of specifications), reducing labor intensity and labor costs;
3. The filling speed of the entire line is 3000 barrels per hour, which can be customized according to needs;
4. Filling accuracy 5L bottle ± 7g, accurate precision, reducing unnecessary waste;
5. Linear piston tracking filling, tracking screw cap;
6. Flexible filling, easy adjustment, suitable for switching back and forth between multiple specifications;
7. The entire line is made of stainless steel material, with a beautiful and elegant appearance.
Product Parameters
Automatic bucket feeding machine, rotary filling and capping integrated machine, crooked lid detection and removal, online bottle weight inspection and removal device, inkjet printer, aluminum foil sealing machine, aluminum foil leak detection machine, intelligent labeling machine, QR code scanning, label CCD detection, servo clamping steering machine, box erector, automatic bottom plate placing machine, packing machine, automatic top plate placing machine, online box weight inspection and removal machine, sealing machine, stacking machine, robot palletizing machine.
Main parameters:
Power supply: AC38OV,50/60HZ
Single line power approximately: 62KW
Gas source pressure: (0.6-0.7) MPa Dry, clean and stable gas source
Single line gas consumption approximately: 1.2mm ³/minute |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Applicable bottle type: Length 80-240mm,Width 80-180mm,Height 200-320mm
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Automatic bucket feeding machine
Applicable bottle type: Length 80-240mm
Width 80-180mm
Height 200-320mm
Capacity: 5L ≤ 4000 barrels/hour |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

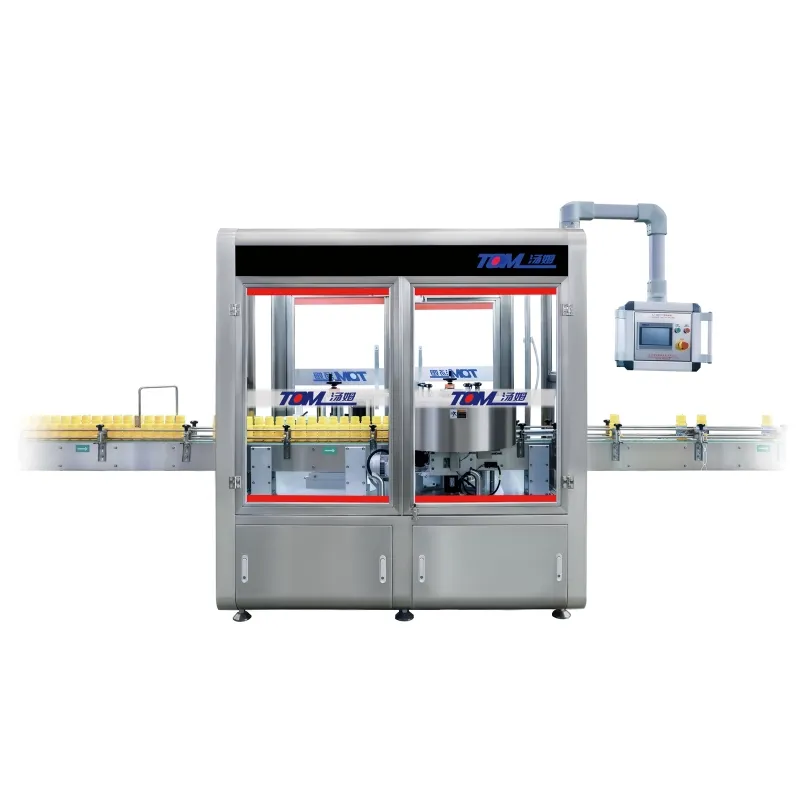

| GXXC-20-6 Intelligent Rotary Filling and Capping Machine |
Applicable bottle types: length 80-240mm, width 80-180mm, height 200-320mm
Capacity: 5L ≤ 4000 barrels/hour
Filling accuracy: 5L ± 7g |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

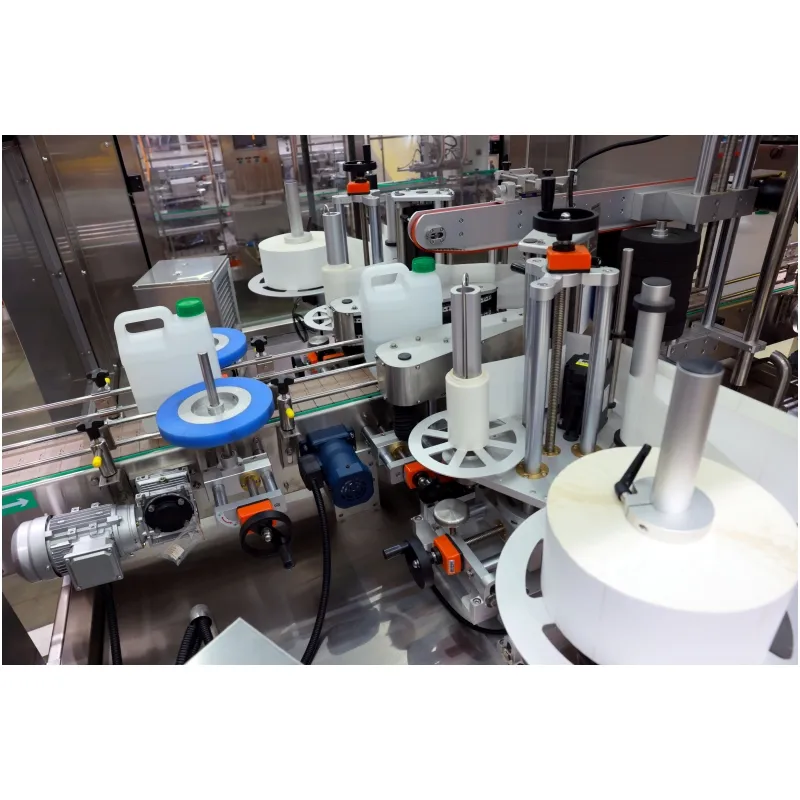

TBJ-920A Intelligent Double sided Adhesive Labeling Machine
Applicable bottle type: length 80-240mm, width 80-180mm
Height 200-320mm
Applicable labels: Height 20-160mm,
20-150m in length
Capacity: 5L ≤ 4000 barrels/hour
Labeling accuracy: ±1mm
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZZP-2NA Intelligent Case Packer
Applicable bottle types:
Diameter 45-95mm,
Height 70-260mm
Carton specifications: 300-500mm in length,
Width 200-400mm
Height 100-300mm
Capacity: 4-8 boxes/minute
Gripping type can be customized according to customer's package
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Collaborative palletizing robot
Maximum load: 20Kg
Capacity: 4-8 boxes/minute
Working radius: 1600mm
Vertical distance: 2100mm
Customer Service
AFTER-SALES AND SERVICE
All-round assisting service, lifetime maintenance for our equipment.
Big date service center to remote solve customer equipment problem.
The professional after-sales team of 100 people, after-sales are all loyal employees who have worked in the company for more than 5 years.
Ample spare parts supply, our basic spare parts are processed and produced by ourselves to ensure the timeless and stability of the spare parts.
TOM will care for every machine out of our factory, just like our own child working outside.

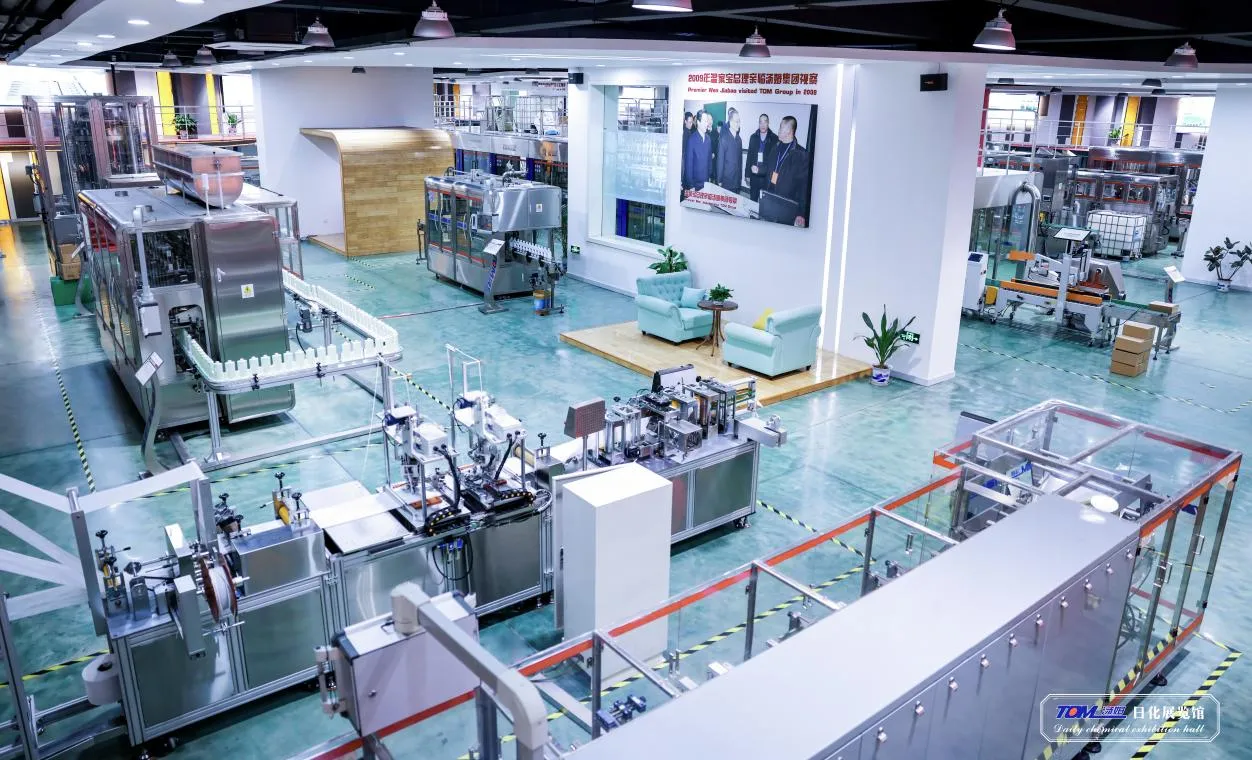

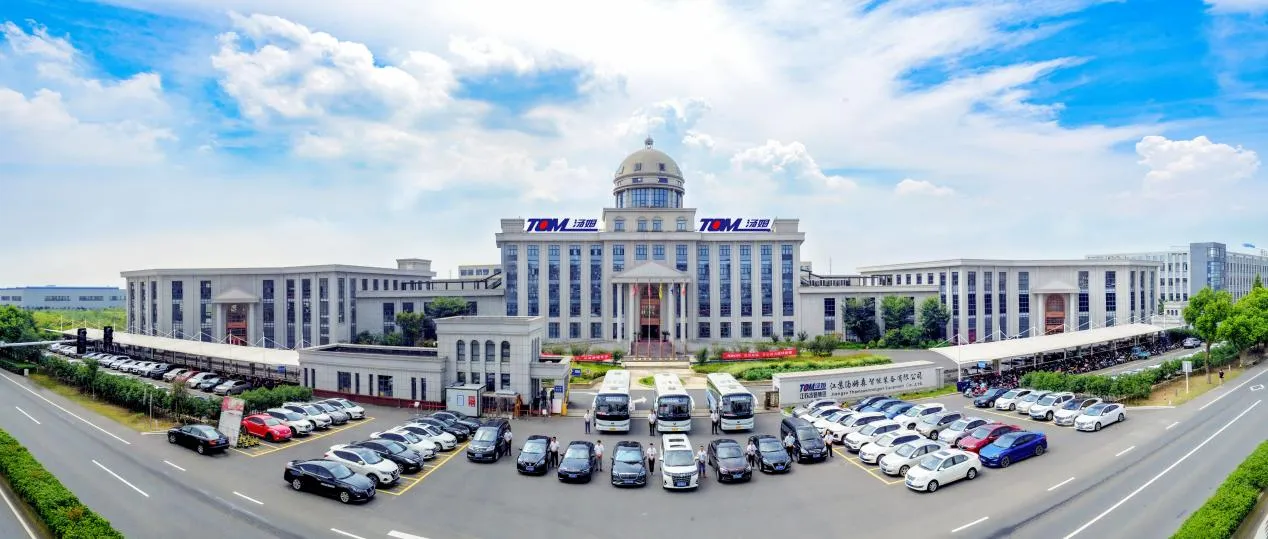

Company Profile
Jiangsu Tom Group is a full-service provider specializing in the research and development, design, and production of intelligent filling equipment. Since entering the intelligent filling industry in 1998, we have been dedicated to providing customers with exquisite engineering design, generations of advanced intelligent filling lines, warehousing and logistics software engineering, EPCM projects, and smart factories.
What we can do ?
· Agrochemicals packaging machines
· Household & personal care packaging machines
· Edible oil, sauces & condiment packaging machines
· Petrochemcials packaging machine
· Coating, paint packaging machines
· Intelligent packaging of chemical new materials

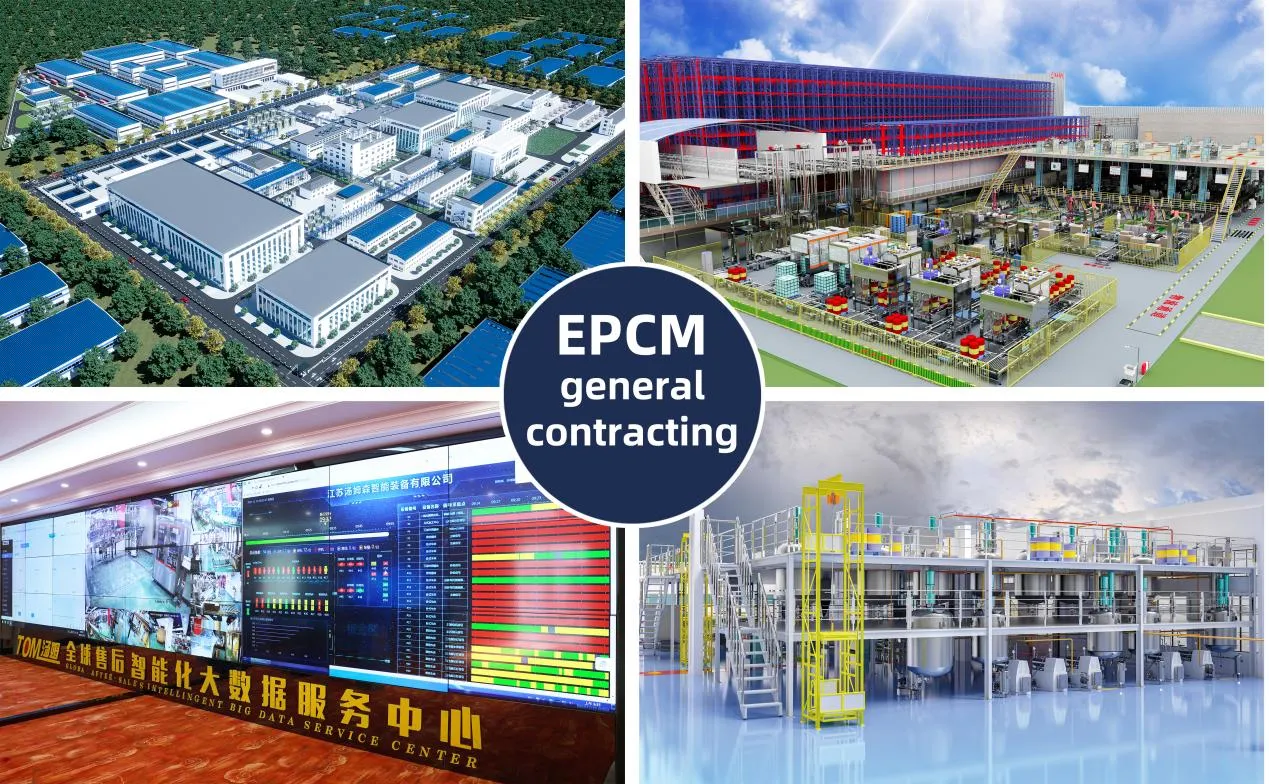

· Pesticide Formulations Engineering (EPC/EPCM )
As of now, Tom has served more than 4000 domestic customers and over 600 foreign customers. Its excellent performance and comprehensive after-sales service system have received unanimous praise from a large number of users. CNPC, Sinopec, CNOOC, Luxi Chemical, China Resources Group, Shanxi Coking Coal Group, CNOOC Grain and Oil, Wanhua Chemical, Tianci, Wengfu, Roche, Jingbo, Kingenta, Stanley, Shanghai Dalian, Jiangsu Longpan, Jiangsu Gaoke, Idemitsu, Castro, Syngenta, Bayer, BASF, Red Sun, Wynca Chemical, Rainbow Chemical, Yinghui, Noposin, Lier, Meibang, Jiangshan Chemical, Libai, Blue Moon, Unilever, Zhuangchen, Qiqiang, Cnnice, Longrich, Reckitt, Liangmianzhen, Likang Medical, Swiss Sika, Oriental Yuhong, 3 trees, Hempel, Jordan Coatings. Nippon Paint, PPG, Asia-paint, Keshun, Nestle, Lee Kum Kee, Yaomazi, Yihai Kerry, Longda, Luhua and other famous domestic and foreign enterprises have become strategic partners of Tom.
